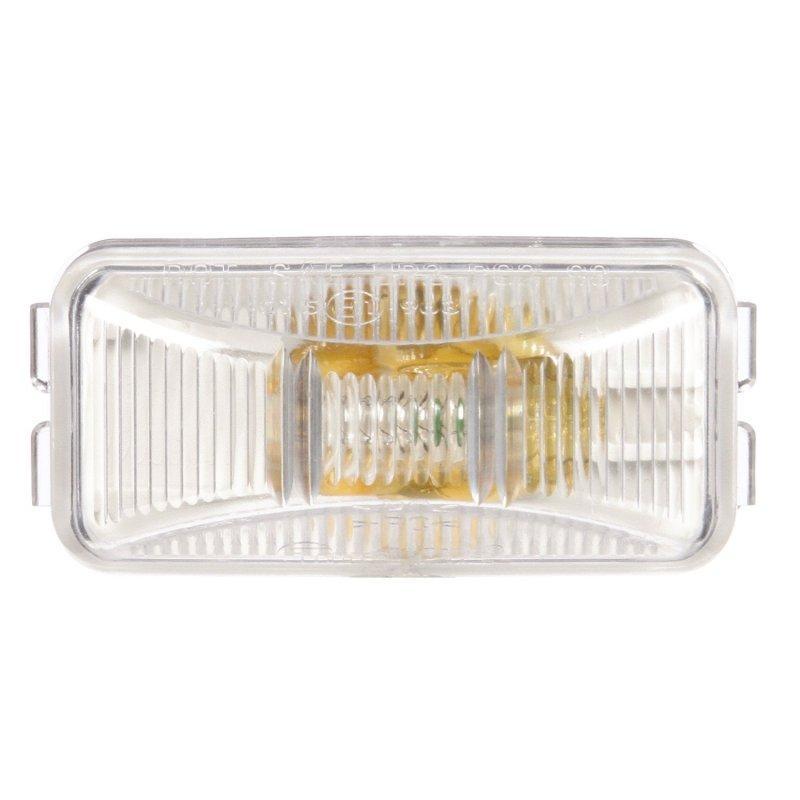

LIGHTS: 15200C3 U13 — Truck-Lite Rectangular Clear Utility Lamp

The Truck-Lite 15200C3 is a 15 Series rectangular clear utility lamp designed to provide reliable auxiliary illumination for truck compartments, cargo areas, and other commercial vehicle applications. It features a high-impact polycarbonate lens and housing that are sonically sealed to help protect the internal bulb from moisture, dust, and road contaminants. The single incandescent bulb is rated for up to 15,000 hours of service life. Designed for a 12-volt electrical system, the lamp uses a PL-10 connection and a compact rectangular profile for compatible bracket-mounted installations. The “C3” suffix identifies the bulk-packaged version of the lamp; “U13” appears to be an inventory or catalog suffix and should be confirmed separately.

Technical Specifications

• Series: Truck-Lite 15 Series

• Lens color: Clear

• Shape: Rectangular

• Approximate dimensions: 2.49" wide × 1.2" high × 0.83" deep

• Lighting technology: Incandescent

• Bulb count: 1

• Voltage: 12V

• Current draw: 0.33A

• Lens and housing material: Polycarbonate

• Construction: Sonically sealed lens and housing

• Rated bulb life: 15,000 hours

• Electrical connection: PL-10

• Mounting: Bracket mount; verify the mounting arrangement required for your application

• Packaging: Bulk

• Replacement reference: Signal-Stat 1500W
